PITBUL-LED

IP65

PITBUL-LED

Robustní kovové lineární svítidlo určené do náročného průmyslového prostředí. Těleso vyrobeno z práškově lakovaného ocelového plechu (RAL 9016) – alternativně nerez AISI304 nebo AISI316. Kryt vyroben z opálového tvrzeného bezpečnostního skla zaručující skvělou homogenitu osvětlení a snížení oslnění. Vybaveno vysoce kvalitními elektronickými komponenty, které garantují vysokou účinnost až do 131 lm/W a životnost LED až 100 000 h. Vyznačuje se vysokou odolností proti stříkající vodě a prachu IP65. Vhodné pro teploty okolí od −40 ° C do +65 ° C (dle varianty svítidla). Neobsahuje silikon – certifikováno dle VDMA 24364. Upevnění pomocí stropních držáků, polohovatelných držáků, vestavných rámů nebo držáků na trubku umožňuje širokou variabilitu použití. Určeno pro přisazenou, vestavnou nebo závěsnou montáž.

Dimensional diagram

Download the family catalogue sheet

Specifications

Parameters

Operating voltage:
220-240 V / 50/60 Hz AC, 220-240 V DC

Source:
LED, 4000K, CRI +80, MacAdam3

Housing:
Painted steel sheet RAL 9016

Cover:
CG - clear tempered safety glass
OP - frosted tempered safety glass

Spotlight:
Painted steel sheet RAL 9016

Fastening:

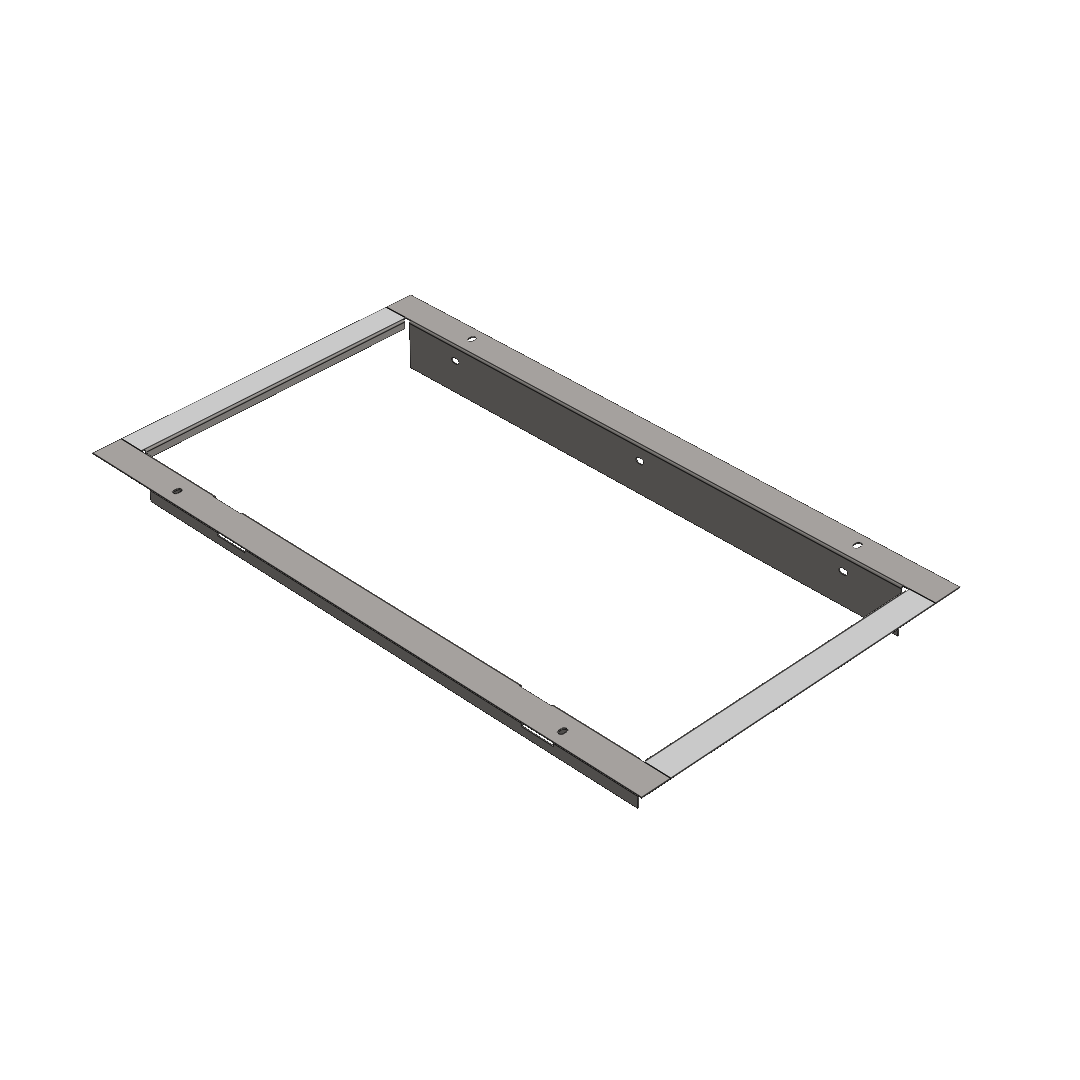

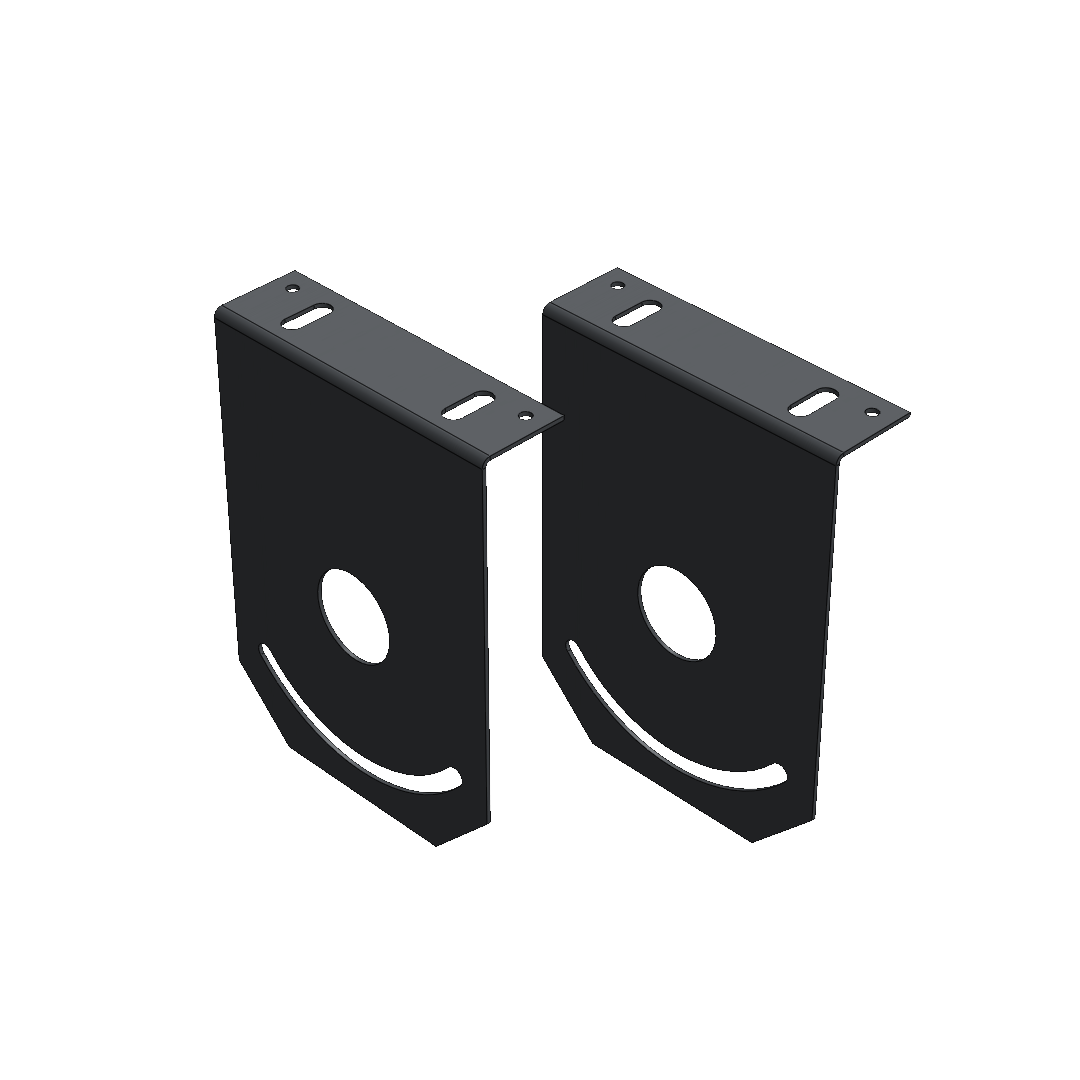

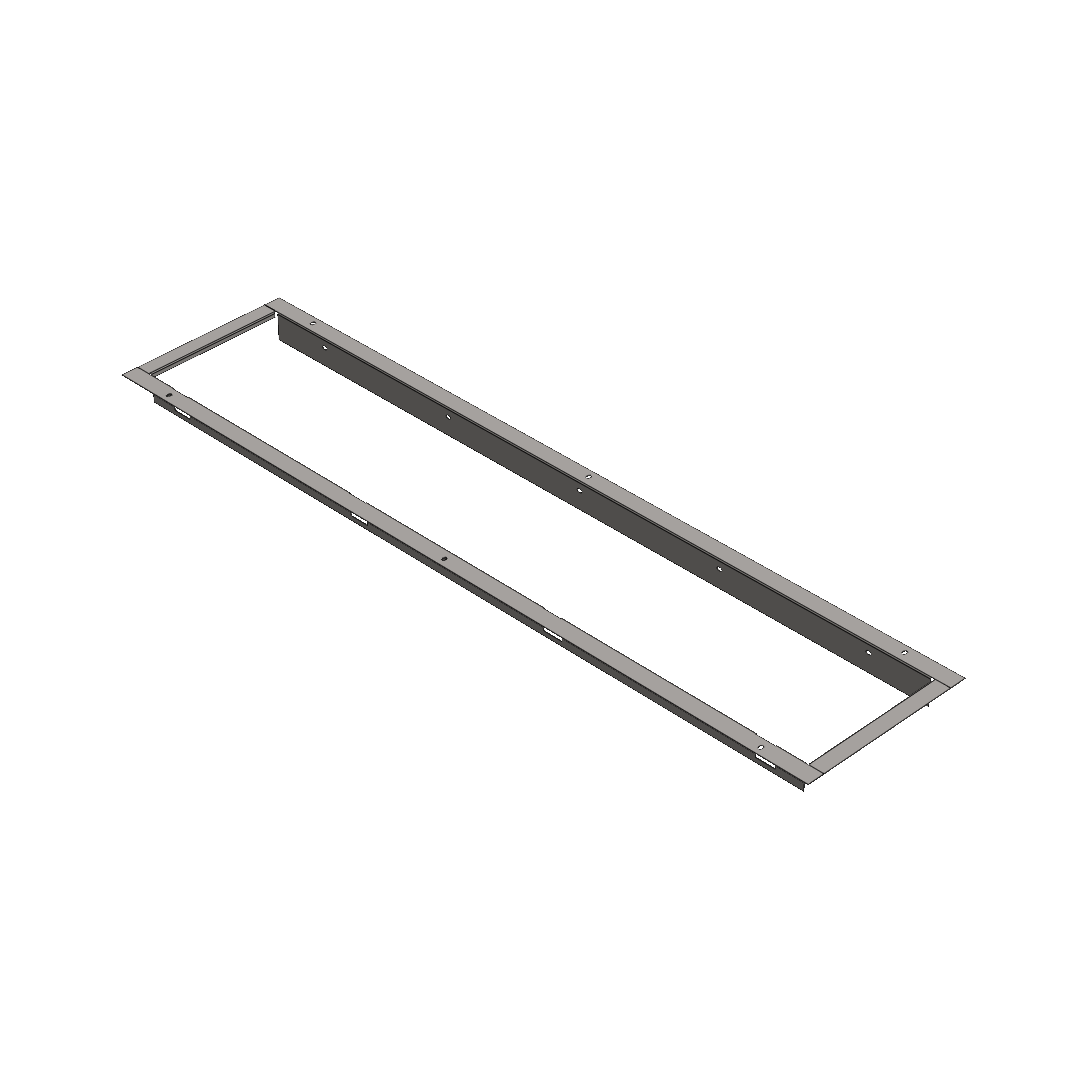

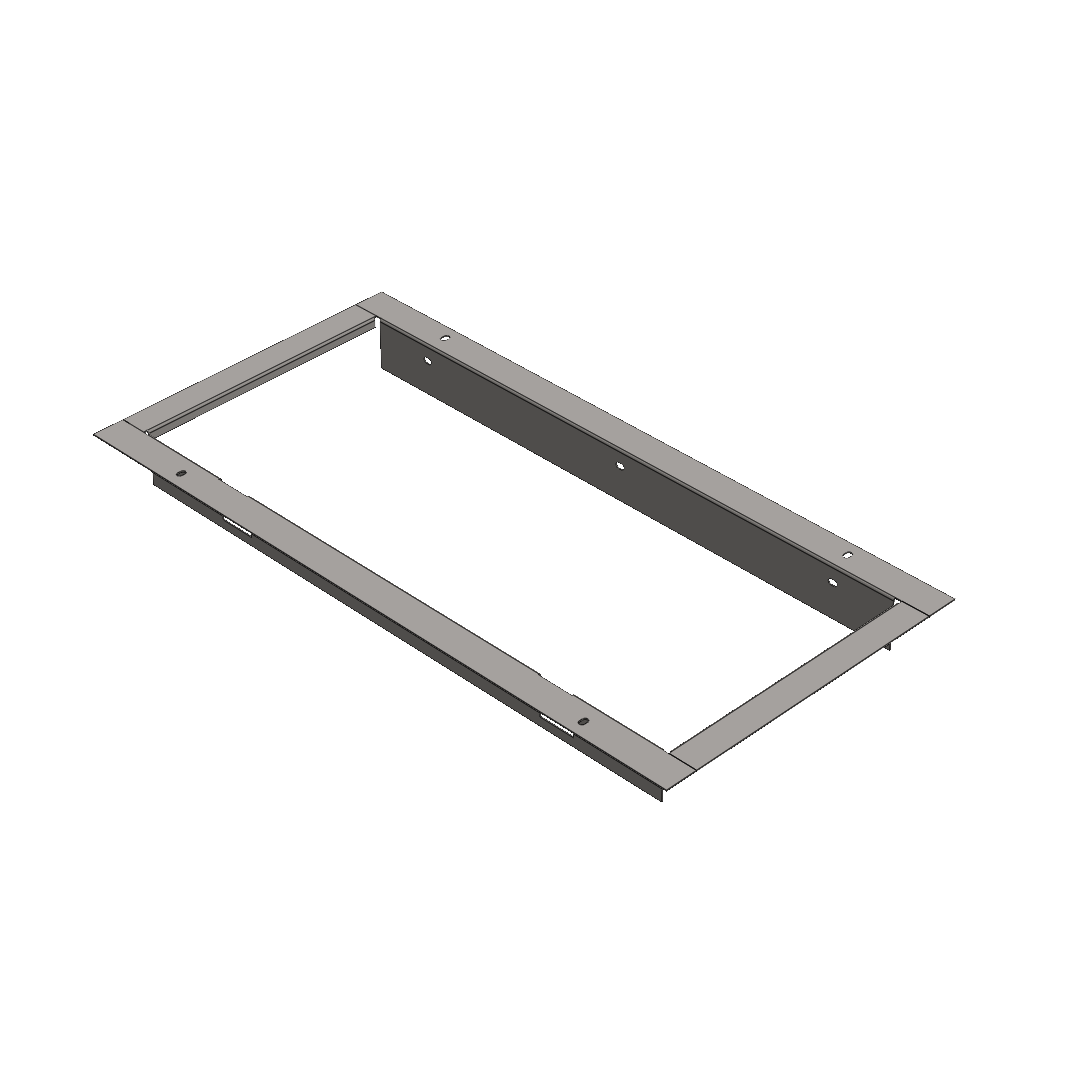

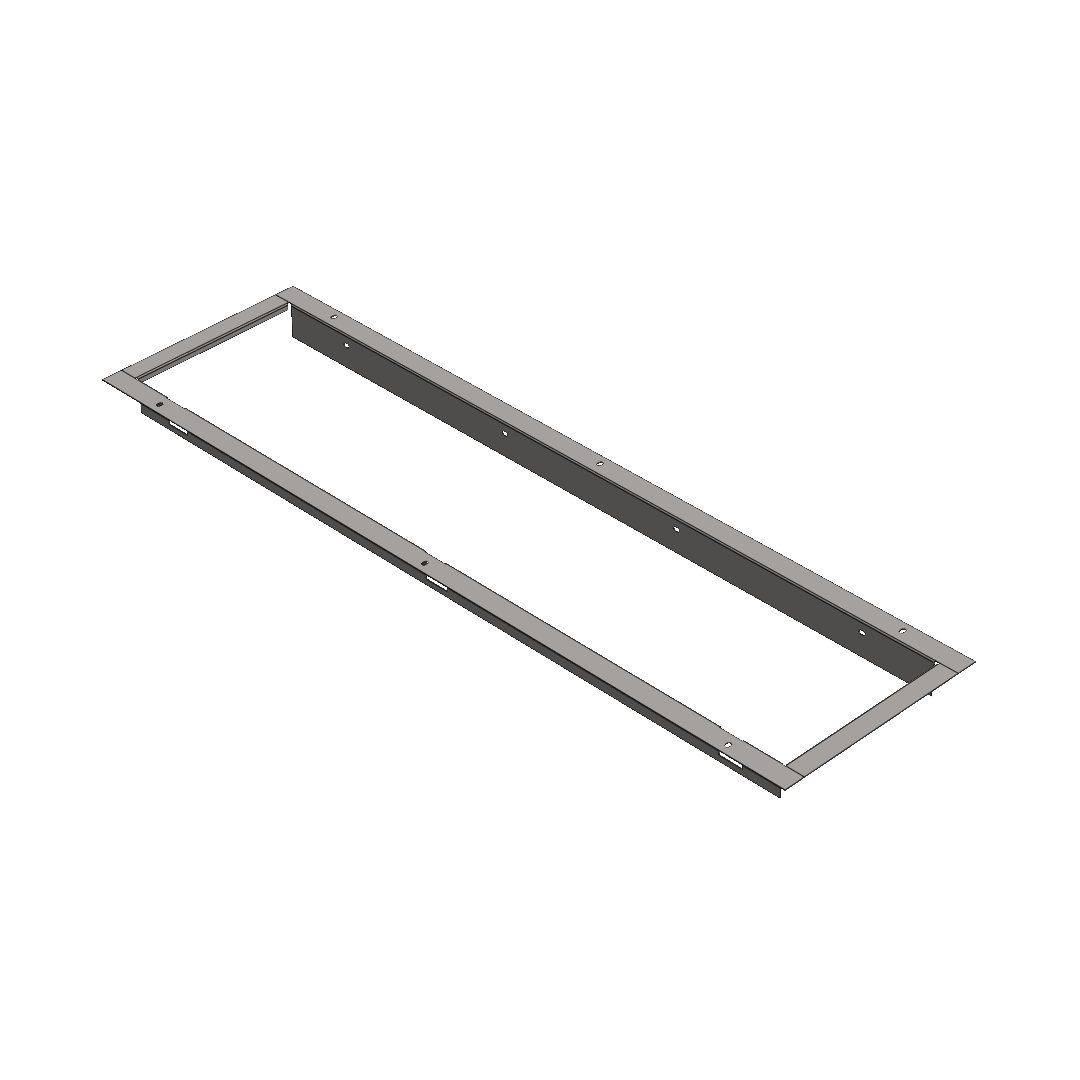

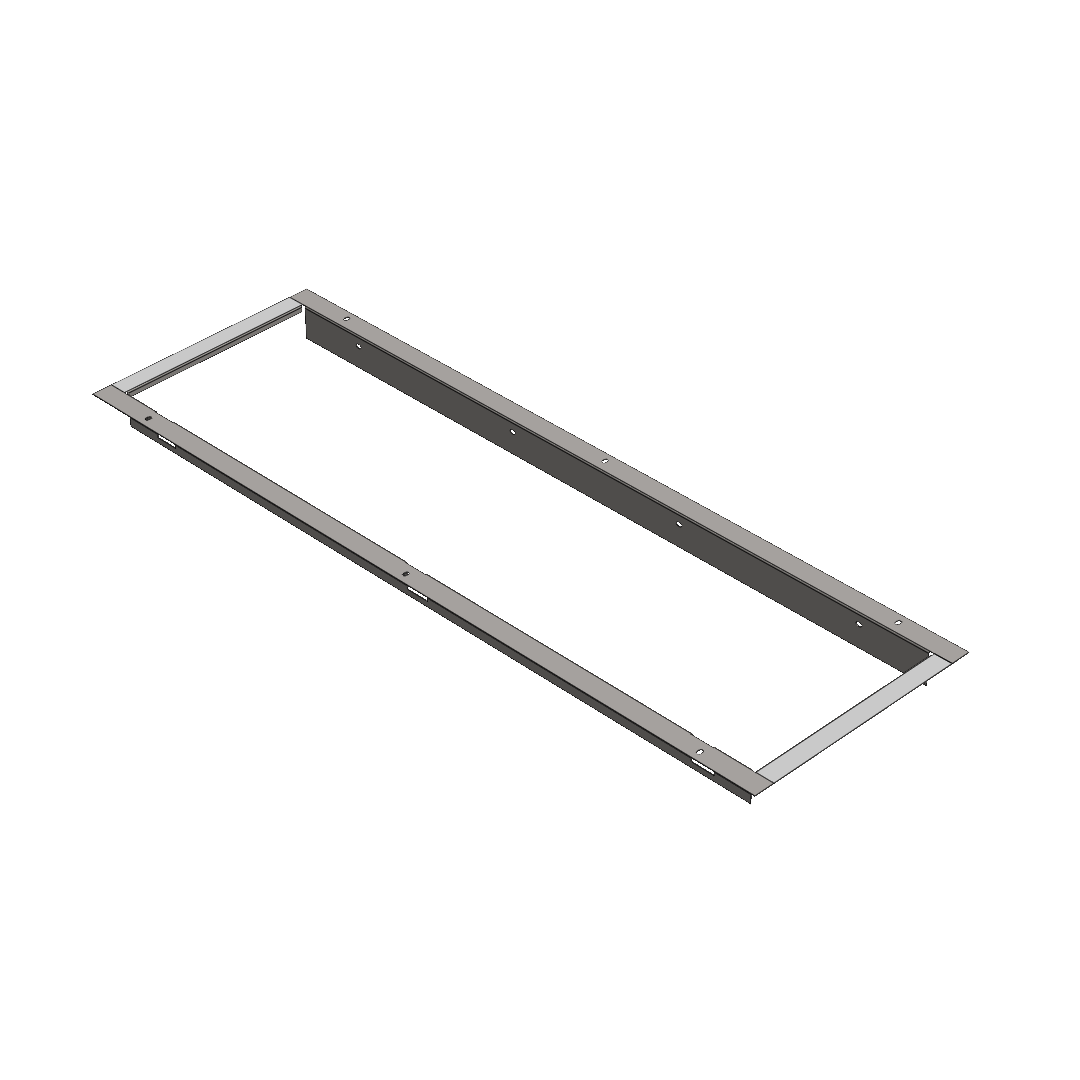

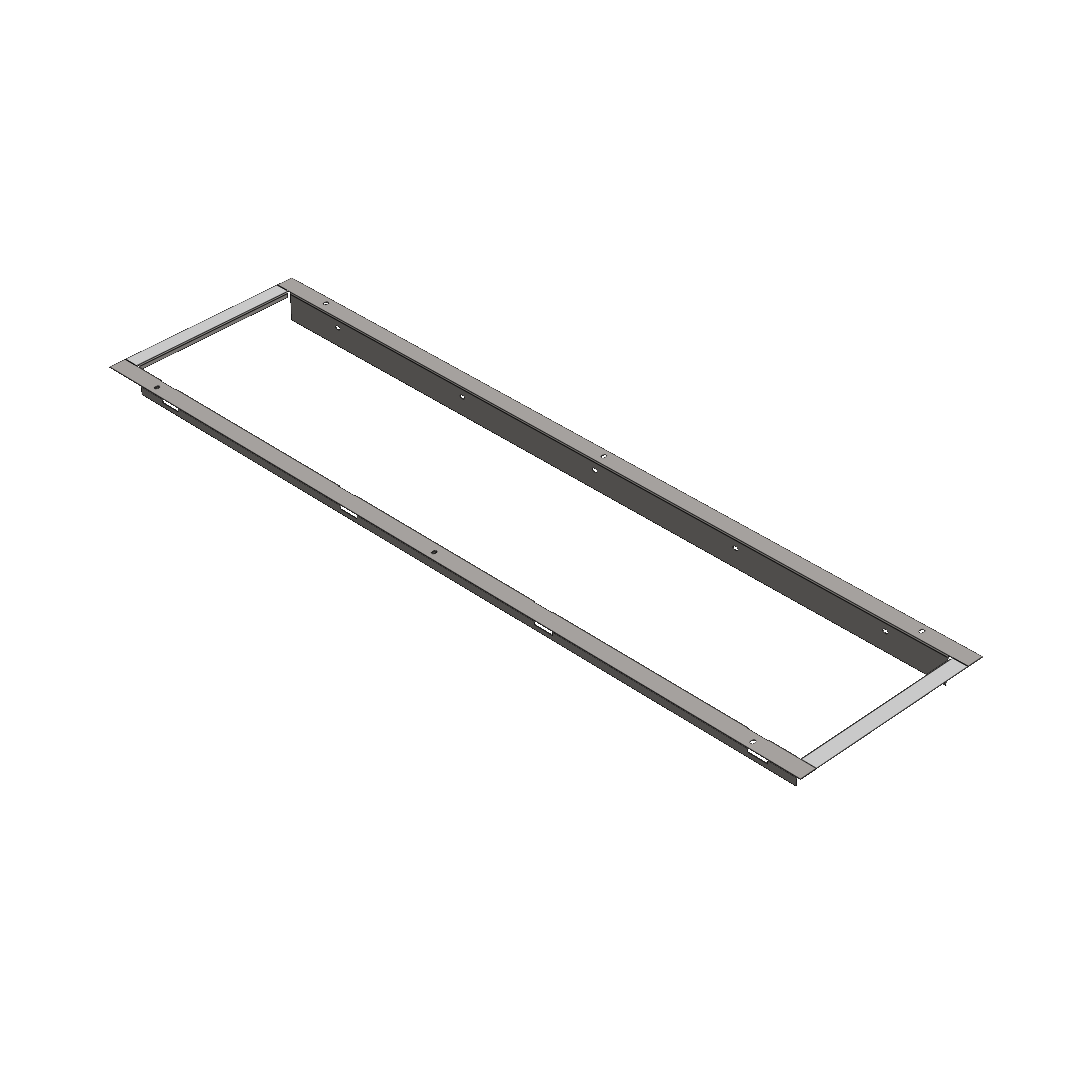

Using M8 screws through the subfloor, hanging eyes, ceiling frame, ceiling brackets or booms screwed to the sides of the body

Connection:
Screwless three-pole terminal block, max. wire cross-section 2.5 mm²

Standard equipment:
Pg13,5 gland for cable diameter 7-12 mm and plug

Calculated lifetime - LED modules:
L80B10 Ta 35 - 70 000 h
L70B10 Ta 35 - 100 000 h

On order

3000K/4000K/5000K/6500K - colour temperature
MULTI - permanent emergency lighting (1h, 3h)
EM - temporary emergency lighting (1h, 3h)
DIM - dimmable electronic ballast (DALI, DSI, 1-10V)
1/3F - single-phase or three-phase connection, max. conductor cross-section 2.5 mm²
RAL - other colours
GESIS - possibility to equip the luminaires with connectors
CG - clear hardened
NEREZ - body made of stainless steel sheet AISI304 or AISI316 (for NEREZ version lower ambient temperature by approx. 5-10 °C)

Configuration

Luminaire wattage (W)

Body length (mm)

Body width (mm)

Luminous flux (lm)

Pass-through cabling

Without a connection

Control method

ON/OFF luminaire

ON/OFF luminaire + emergency 1h

ON/OFF luminaire + emergency 3h

Ambient temperature of the luminaire

-20°C≤ta≤45°C

-20°C≤ta≤50°C

-20°C≤ta≤55°C

-20°C≤ta≤65°C

0°C≤ta≤35°C

0°C≤ta≤40°C

Emergency

Product variants

PITBUL-LED-OP-5000-218-4K, IP65

Product type: 051850 Item number: 31210

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

-20°C≤ta≤65°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

7,84

Detail of the variant

PITBUL-LED-OP-10000-418-4K, IP65

Product type: 051853 Item number: 31213

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

8,92

Detail of the variant

PITBUL-LED-OP-10000-236-4K, IP65

Product type: 051851 Item number: 31211

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

13,88

Detail of the variant

PITBUL-LED-OP-18300-436-4K, IP65

Product type: 051854 Item number: 31214

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

-20°C≤ta≤50°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

16,1

Detail of the variant

PITBUL-LED-OP-15000-258-4K, IP65

Product type: 051852 Item number: 31212

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

16,66

Detail of the variant

PITBUL-LED-OP-29000-458-4K, IP65

Product type: 051855 Item number: 31215

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

-20°C≤ta≤45°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

19,62

Detail of the variant

PITBUL-LED-OP-5000-218-4K-1F, IP65, 3x1,5mm²

Product type: 051850-1F Item number: 39009

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

-20°C≤ta≤65°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-10000-418-4K-1F, IP65, 3x1,5mm²

Product type: 051853-1F Item number: 39015

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-10000-236-4K-1F, IP65, 3x1,5mm²

Product type: 051851-1F Item number: 39011

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-18300-436-4K-1F, IP65, 3x1,5mm²

Product type: 051854-1F Item number: 39017

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

-20°C≤ta≤50°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-15000-258-4K-1F, IP65, 3x1,5mm²

Product type: 051852-1F Item number: 39013

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-29000-458-4K-1F, IP65, 3x1,5mm²

Product type: 051855-1F Item number: 39019

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

-20°C≤ta≤45°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

3x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

19,52

Detail of the variant

PITBUL-LED-OP-5000-218-4K-3F, IP65, 5x1,5mm²

Product type: 051850-3F Item number: 39010

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

-20°C≤ta≤65°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-10000-418-4K-3F, IP65, 5x1,5mm²

Product type: 051853-3F Item number: 39016

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

9,1

Detail of the variant

PITBUL-LED-OP-10000-236-4K-3F, IP65, 5x1,5mm²

Product type: 051851-3F Item number: 39012

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-18300-436-4K-3F, IP65, 5x1,5mm²

Product type: 051854-3F Item number: 39018

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

-20°C≤ta≤50°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-15000-258-4K-3F, IP65, 5x1,5mm²

Product type: 051852-3F Item number: 39014

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-29000-458-4K-3F, IP65, 5x1,5 mm²

Product type: 051855-3F Item number: 35770

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

-20°C≤ta≤45°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

5x1.5 mm²

Control method:

ON/OFF luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

19,24

Detail of the variant

PITBUL-LED-OP-5000-218-4K-DIM DALI, IP65

Product type: 051871 Item number: 36978

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

-20°C≤ta≤65°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

7,86

Detail of the variant

PITBUL-LED-OP-10000-418-4K-DIM DALI, IP65

Product type: 051874 Item number: 39006

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

8,96

Detail of the variant

PITBUL-LED-OP-10000-236-4K-DIM DALI, IP65

Product type: 051872 Item number: 39004

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-18300-436-4K-DIM DALI, IP65

Product type: 051875 Item number: 39007

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

-20°C≤ta≤50°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

15,68

Detail of the variant

PITBUL-LED-OP-15000-258-4K-DIM DALI, IP65

Product type: 051873 Item number: 39005

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

-20°C≤ta≤55°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

PITBUL-LED-OP-29000-458-4K-DIM DALI, IP65

Product type: 051876 Item number: 39008

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

-20°C≤ta≤45°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

DALI luminaire

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-5000-218-4K, IP65, 1h

Product type: 051856 Item number: 31216

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-10000-418-4K, IP65, 1h

Product type: 051859 Item number: 31219

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

9,24

Detail of the variant

MULTIPITBUL-LED-OP-10000-236-4K, IP65, 1h

Product type: 051857 Item number: 31217

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

14,06

Detail of the variant

MULTIPITBUL-LED-OP-18300-436-4K, IP65, 1h

Product type: 051860 Item number: 31220

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

16,42

Detail of the variant

MULTIPITBUL-LED-OP-15000-258-4K, IP65, 1h

Product type: 051858 Item number: 31218

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-29000-458-4K, IP65, 1h

Product type: 051861 Item number: 31221

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 1h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-5000-218-4K, IP65, 3h

Product type: 051862 Item number: 31222

Luminous flux (lm):

4470

Power input(W):

35

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-10000-418-4K, IP65, 3h

Product type: 051865 Item number: 31225

Luminous flux (lm):

8899

Power input(W):

70

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

703

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-10000-236-4K, IP65, 3h

Product type: 051863 Item number: 31223

Luminous flux (lm):

8940

Power input(W):

70

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

MULTIPITBUL-LED-OP-18300-436-4K, IP65, 3h

Product type: 051866 Item number: 31226

Luminous flux (lm):

15895

Power input(W):

121

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1313

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

19,8

Detail of the variant

MULTIPITBUL-LED-OP-15000-258-4K, IP65, 3h

Product type: 051864 Item number: 31224

Luminous flux (lm):

13410

Power input(W):

104

Tc (K):

4000

Ta (°C):

0°C≤ta≤40°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

310

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

17,26

Detail of the variant

MULTIPITBUL-LED-OP-29000-458-4K, IP65, 3h

Product type: 051867 Item number: 31227

Luminous flux (lm):

24845

Power input(W):

195

Tc (K):

4000

Ta (°C):

0°C≤ta≤35°C

Housing:

lacquered sheet metal

Cover:

OP - frosted tempered safety glass

Length A (mm):

1613

Width B (mm):

369

C (mm):

142

Fastening:

mounted/fixed/hinged

CRI:

≥80

Pass-through cabling:

Without a connection

Control method:

ON/OFF luminaire + emergency 3h

Beam angle:

Very wide beam >80°

Weight (kg):

0

Detail of the variant

Accessories

Šroub závěsný DIN 580 M8-oko

Obrázek příslušenství

Item number: 2038

Product type: 004642

Catalogue sheet Dimensional diagram STEP

Sada třmenů na trubku Ø 60 mm (2"), M8, AISI304 (2 ks)

Item number: 75312

Product type: 051100

Catalogue sheet

Sada třmenů na trubku Ø 50 mm (1 1/2"), M8, AISI304 (2 ks)

Item number: 75313

Product type: 051101

Catalogue sheet

Sada třmenů na trubku Ø 42 mm (1 1/4"), M8, AISI304 (2 ks)

Item number: 75314

Product type: 051102

Catalogue sheet

Sada třmenů na trubku Ø 60 mm (2"), M8, AISI316 (2 ks)

Item number: 75315

Product type: 051103

Catalogue sheet

Sada třmenů na trubku Ø 50 mm (1 1/2"), M8, AISI316 (2 ks)

Item number: 75316

Product type: 051104

Catalogue sheet

Sada třmenů na trubku Ø 42 mm (1 1/4"), M8, AISI316 (2 ks)

Item number: 75317

Product type: 051105

Catalogue sheet

Set of adjustable brackets PITBUL (2 pcs)

Obrázek příslušenství

Item number: 4317

Product type: 053940

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 1x-3x18W

Obrázek příslušenství

Item number: 4318

Product type: 053941

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 4x18W

Obrázek příslušenství

Item number: 4319

Product type: 053942

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 1x-3x36W

Obrázek příslušenství

Item number: 4320

Product type: 053943

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 4x36W

Obrázek příslušenství

Item number: 4321

Product type: 053944

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 58W

Obrázek příslušenství

Item number: 4322

Product type: 053945

Catalogue sheet Dimensional diagram STEP

Set for recessed installation PITBUL 4x58W

Obrázek příslušenství

Item number: 4323

Product type: 053946

Catalogue sheet Dimensional diagram STEP

Sada stropních nerezových úchytů PITBUL, AISI304 (2ks)

Obrázek příslušenství

Item number: 4811

Product type: 054935

Catalogue sheet Dimensional diagram STEP

Downloads

Installation instructions

LDT, IES

Declaration of conformity EU

Tender Text
